Level IV Ballistic Plate (PE + Al203) NIJ .06 Certified
Home » Custom Products » Bulletproof Equipment » Bulletproof Plate » Level IV Ballistic Plate (PE + Al203) NIJ .06 Certified

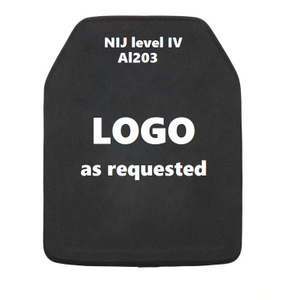

Level IV Ballistic Plate (PE + Al203) NIJ .06 Certified

PE + Al203  Level 4 Plate – The Armor Standard for Durability
Protection level: IV NIJ
Size: 25 x 30 x 2.5 cm (custom)
Protection area: 0.075m2
Weight: 2.8 + 0.05 kg
Color: black (custom)

Level IV body armor that is NIJ - can stop the following bullets:
· AK47 – 7.62 x 39 API (armor-piercing round)
· 7.62 x 54 R (the bullet used in the popular DRAGUNOV sniper rifle)
· 5.45 x 39
· 5.56 x 45 (.223 Rem) M855
· 7.62 x 51mm NATO
  • PE + Al203

  • MilitaryArm®

facebook sharing button
linkedin sharing button
sharethis sharing button

Level IV Ballistic Plate (PE + Al203) NIJ .06 Certified

Type IV compliance for hard armor inserts or plates requires that specimens be tested in a conditioned condition with .30 caliber armor-piercing (AP) bullets (US military designation M2 AP) with a specified weight of 10.8 g (166 gr) and a velocity of 878 m /s ± 9.1 m/s (2880 ft/s ± 30 ft/s).



    +10 mm Alumina Ceramic

    +12 mm UHWMPE

    +comfort foam on the edge & back of the panel

Size: 25 x 30 x 2.5 cm (as requested)
Protection area: 0.075m2

Weight: 2.8 + 0.05 kg

Color: black (as requested)


Lvl marked vests. IV have been designed to effectively eliminate projectiles of the following types:

·       AK47 – 7.62 x 39 API (armor-piercing round)

·       7.62 x 54 R (the bullet used in the popular DRAGUNOV sniper rifle)

·       5.45 x 39

·       5.56 x 45 (.223 Rem) M855

·       7.62 x 51mm NATO, M80 - .308


Thus, when a bullet hits a body armor, it is caught in what is known as "web" of very strong fibers. These fibers absorb and dissipate the impact energy that is transferred to the body armor from the bullet, causing the bullet to deform. Additional energy is absorbed by each subsequent layer of material in bulletproof vests until the projectile stops.


Because the fibers work together both in a single layer and with other layers of material in the vest, a large area of body armor is involved in preventing bullet penetration. This also helps to dissipate forces that can cause non-penetrating injuries to internal organs.



Each bulletproof product is certified. The products are tested by independent, external entities.


Supply Ability: 5 000 pieces per month

Lead time:

Quantity (pieces): 1 – 1000 / 15 days

Quantity (pieces): 1001 – 5 000 / 30 days

Lead time (days): 15-30. To be negotiated

Logo customization: min. order of  50 pieces

Graphic customization: min. order of 50 pieces



Each offered product can be adapted to the customer's needs.

Material design, color, and size depending on customer requirements.
